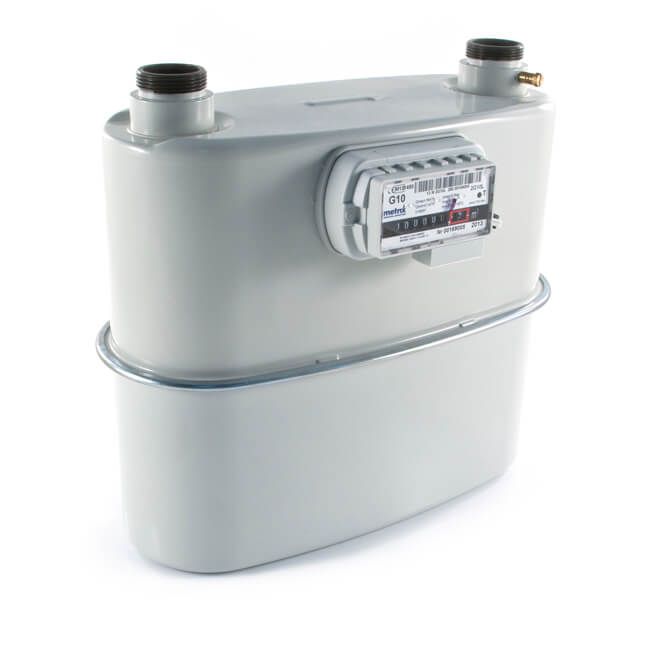

G10 Diaphragm Gas Meter – 16m³/hr
16 m³/hr Diaphragm meter manufactured by BS EN ISO 9001:2008 companies in Europe, certified under the European certification regime, and sealed.

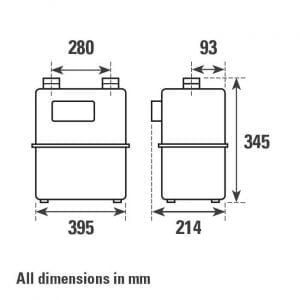

Dimensions:- A = 280 mm B = 395 mm C = 93 mm D = 214 mm E = 345 mm
Check that this meter has the inlet/outlet dimension ‘A’ and thread size which meet your requirements because these may differ from the traditional ‘UK’ meter dimensions. Meter reads in cubic metres and is fitted with a test point. 1.1/4″ BS746 Connections.
No claim in respect of damage, internal or external, to a gas meter will be accepted unless such damage is notified in writing by the end of the working day following our customer’s receipt of the meter. We suggest that the internal mechanism is checked by passing air through the meter and noting that it registers.
Available for collection next day when ordered by 5pm or delivery within 2 working days
