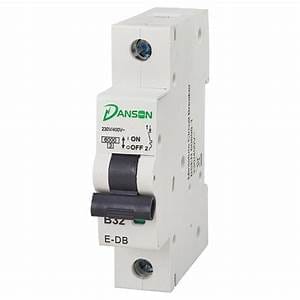

Danson E-DBYC132 MCB 6ka S.P. Single Module C Curve 32A 230V AC Circuit Breaker
Operating voltage of 230V AC.
For use in a single circuit.
Number of poles: Single Pole (S.P.).
Curve type: C Curve.
Breaking capacity: 6kA.
Rated current: 32A.
Rated voltage: 230V AC.
Frequency: 50/60Hz.
Trip unit: Thermal-magnetic.
Trip current range: 32A.
Mounting type: DIN rail.
Modular width: 18mm.
Terminal capacity: 1-25mm².
Terminal type: Screw type.
Insulation voltage: 500V.
Operating temperature range: -5°C to +40°C.
Storage temperature range: -25°C to +70°C.
Protection degree: IP20.
Mechanical life: 20,000 cycles.
Electrical life: 10,000 cycles.
Standards compliance: IEC 60898-1.
MPN: E-DBYC132
